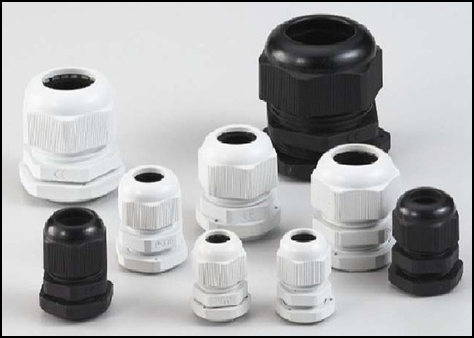

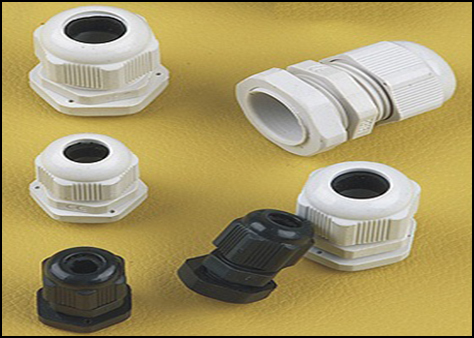

PG Glands Supplier in dubai

Material	Nylon 66, 94-2V
Range	PG 7 To PG 48
Feature	Vibration Lock and Strain Relief
Seal Rating	Tight Rubber 'O' Ring for better protection - IP 68
Temperature Range	Heat Resistance Upto 120°
Application	Used for cable pass through, Machinery Control Box/Panel, Electrical Distribution Box/Panel.

Glands	Thread Dia.	Thread Length	Cable Clamping Range (mm)
Size	mm	mm	From	To
PG 7	12.5	8.0	3.0	6.5
PG 9	15.2	8.0	4.0	8.0
PG 11	18.6	8.0	5.0	10.0
PG 13.5	20.4	9.0	8.0	12.0
PG 16	22.5	10.0	10.0	14.0
PG 19	24.0	10.0	12.0	16.0
PG 21	28.3	11.0	13.0	18.0
PG 25	30.0	11.0	16.0	21.0
PG 29	33.0	11.0	18.0	25.0
PG 36	47.0	13.0	22.0	32.0
PG 42	54.0	15.0	28.0	38.0
PG 48	59.3	15.0	34.0	44.0

PG Glands Supplier in dubai, Cable Glands in dubai, Metric Type Glands Supplier in dubai, PVC Cable Glands Supplier in dubai
